If a parking barrier gate opens normally but does not close afterward, the problem is usually related to safety inputs, loop detector signals, photocell faults, or incorrect controller settings.
Barrier systems are designed to prevent closing when a vehicle or obstacle is detected. When safety sensors or detection devices send continuous signals, the controller may keep the barrier open to avoid unsafe movement.
Our technicians inspect the safety circuits, loop detection system, and barrier control logic to determine why the barrier refuses to complete the closing cycle.
Common Signs of a Barrier Gate Not Closing
What Causes a Barrier Gate Not to Close
Loop Detector Sending Continuous Trigger
Many exit barriers are connected to loop detectors embedded in the ground. If the loop detector continuously sends a vehicle detection signal,…will not allow the barrier to close. This is commonly seen in exit barriers where the loop gives unstable or continuous signals due to wiring faults or incorrect sensitivity settings. the controller will not allow the barrier to close.
In some cases the loop detector sensitivity or frequency settings are incorrect. This can cause the barrier to detect vehicles even when the lane is empty.
Sometimes resetting the controller temporarily fixes the problem, but if the loop detector circuit is damaged or poorly installed, the issue usually returns. In these situations replacing or repairing the loop detector may be required.
Incorrect Loop Installation
Proper loop installation requires multiple turns of cable inside the ground slot to create a stable detection field.
In professional installations, the loop cable is often wound four turns for stable performance. When only two turns are used, the detection signal becomes weak and difficult to calibrate.
As the system ages, this poor installation can cause unstable detection where the barrier sometimes detects vehicles and sometimes fails to detect them.
This issue becomes more noticeable over time, especially when fewer cable turns were used during installation, making it difficult to maintain stable detection.
Photocell Safety Sensor Problems
Barrier photocells can also prevent the system from closing. If the photocell beam is blocked or faulty, the barrier may not close. In many cases, this happens due to dust, heat exposure, or slight misalignment, even when the sensor appears physically normal.
In busy entrances, photocells may be disturbed by pedestrians, vehicles, or physical impacts.Sometimes the sensor housing appears normal, but internal alignment may be affected due to vibration, heat, or minor impact from vehicles or pedestrians.
Photocell Beam Blocked by Objects
Another common situation is when the photocell beam is blocked by an object without the client realizing it.
Objects such as signboards, plants, equipment, or parked vehicles may interrupt the safety beam. When the controller detects this blockage, it will keep the barrier open to prevent potential accidents.
In many cases, the blockage is not obvious, and users may not realize that objects near the sensor are interrupting the beam.
“Close After Photo” Controller Setting
Some barrier systems include a parameter called Close After Photo.
In this mode the barrier opens after a trigger but will not close until the vehicle crosses the photocell beam.
If a vehicle stops before crossing the sensor or reverses direction, the barrier may remain open. Many users interpret this behavior as a malfunction even though the barrier is following its programmed safety logic.
To avoid this situation, some technicians configure an additional auto-close timer so the barrier eventually closes even if the photocell beam is not crossed.
Damaged Accessory Cables
Accessories such as photocells, loop detectors, and receivers are often connected using low-voltage cables.
Over time the cable insulation may deteriorate and allow conductors to short together. When this happens the controller receives incorrect signals from safety inputs and prevents the barrier from closing.
Accessory Fuse Failure on the Control Board
In some cases the barrier control board appears to function normally and indicator lights remain active, but the connected accessories receive no power.
This can occur when the accessory fuse on the control board has failed. Many inexperienced technicians overlook this issue because the controller itself still appears powered.
Do not keep resetting the barrier repeatedly, as this may lead to further damage in the control board or internal components.
Checks We Perform Before Repair
- Loop detector signal inspection
- Loop frequency and sensitivity adjustment
- Photocell alignment and safety input test
- Accessory cable and wiring inspection
- Control board fuse and relay check
- Limit switch response test
- Barrier controller configuration inspection
- Complete opening and closing cycle observation
Barrier Gate Not Closing? Book On-Site Repair

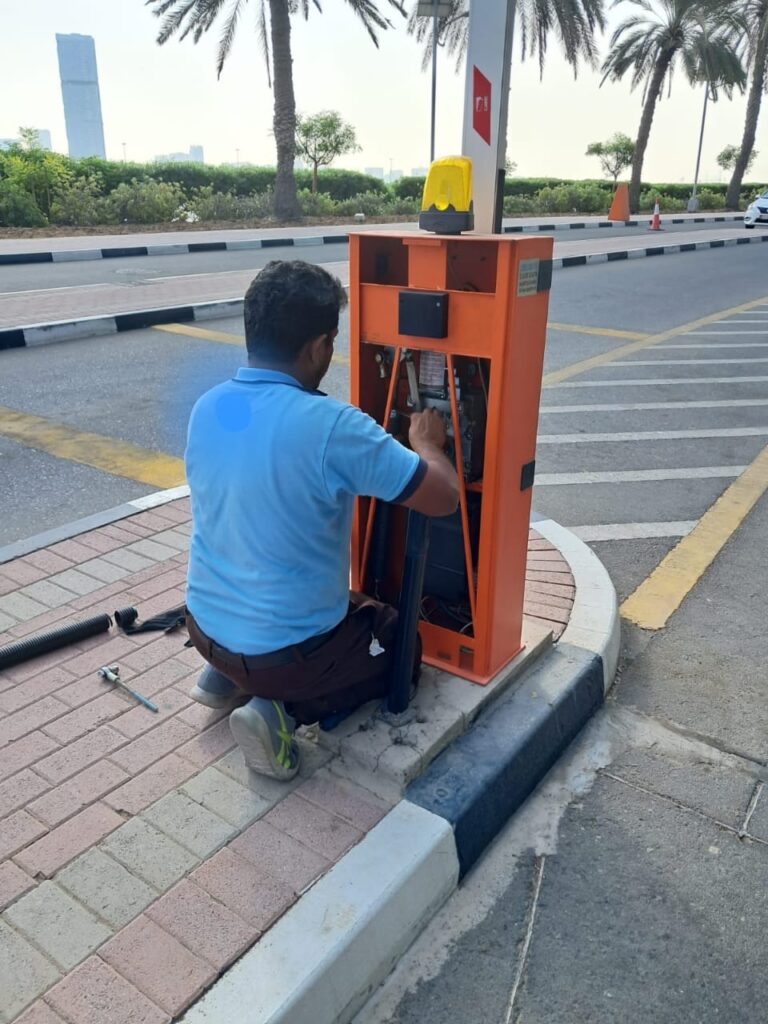

If your parking barrier gate opens but refuses to close, our technicians provide on-site inspection and repair across Dubai.
We diagnose loop detectors, safety sensors, control board settings, and mechanical components to restore reliable barrier operation.
For complete barrier troubleshooting and repair services, visit our Barrier Gate Repair Dubai page.
FAQ
Why does my barrier gate open but not close?
This often happens when the loop detector continues detecting a vehicle, the photocell beam is blocked, or the barrier controller safety input prevents closing.
Can loop detector problems stop the barrier from closing?
Yes. If the loop detector continuously sends a trigger signal, the barrier controller may believe a vehicle is still present and prevent closing.
Can photocell sensors stop the barrier from closing?
Yes. Photocells are safety devices designed to prevent the barrier from closing when an obstacle is detected.
Do you repair barrier gates that are not closing in Dubai?
Yes. We provide on-site diagnosis and repair for parking barriers that fail to close properly across Dubai.
